Autogate Motor Model Turbo 880
The D’NOR Turbo 880 Autogate System offers modern design, robust security, and convenience. Suitable for swing and folding gates, it features a durable motor, user-friendly installation, and easy retrofitting. Safety is ensured with a photobeam sensor and auto-reverse function, while security is enhanced by an intruder alarm and motion lock. Convenience includes an auto-close timer, 4-channel remote control, and auto-lighting. The built-in battery provides 72 hours of backup power, with manual operation available. With extensive dealer support across Malaysia and Indonesia, the Turbo 880 is a comprehensive solution for homeowners.
Italy Technology. Swing / Folding Auto Gate Operator.
With 4 channel remote control.
Specifications
| Power Supply | AC 230V |
| Operating Voltage | DC12V for Cushioning Speed |
| Reduction Gear | 4 Stages Planetary Type |
| Motor Rotation Speed | 3700 RPM |
| Safety Clutch | Electronic Counter Technology Auto Reverse |
| Operating Ambient Temperature | -10°C to 40°C |
| Electronic Controller | Microcomputer Based |
| Gate Speed | 10 – 14 Second |
| Max Gate Weight | 300kg per Wing |
| Manual Option | Special Released Key for Manual Operation |
| Remote Controller | AC 230V |
| Power Supply | 4 Channel Anti-spy Multifunction |
Autogate Motor Model 212
The D’NOR Model 212 Folding Gate Operator is an armed type suitable for folding and swing gates. This system features a side-mounted motor with an infrared sensor, allowing remote control operation for convenient gate opening and closing. While it does not include advanced security features, it offers speed adjustment for gate movement. The gate can be manually opened with an Allen key during power outages, with a battery providing up to 72 hours of backup power. Designed for longevity, the Model 212 lasts up to 10 years with regular maintenance. It operates quietly and includes a 2-year warranty.
Italy Technology. Swing / Folding Auto Gate Operator.
With 2 or 4 channel remote control.
Specifications
| Power Supply | AC 220V, 60Hz/50Hz |
| Operating Voltage | DC24V for Normal Speed DC12V for Cushioning Speed |
| Max Length Of Gate | 3.5 Meter per Wing |
| Safety Clutch | Electronic Current Sensing |
| Position Limit Device | Electronic Fuzzy Logic |
| Driving Method | Electro – Mechanical screw drive piston type |
| Back-up Battery | 12 volt 7AH Rechargeable |
| Max Gate Weight | 350kg per Wing with Force Adjustable |
| Motor Power Supply | 12 – 24V |
| Travel Time 90(Sec) | 10 – 15sec |
| Working Temperature | 10 C° to 50 C° |
| Weight (Kg) | 2.9kg |
| Electronic Controller | Micro-processor Based |

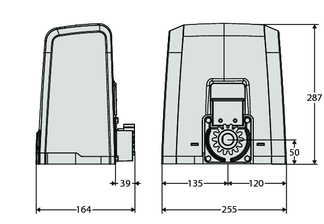

Sliding Gate System DEIMOS AC
Complete kit 230 V for sliding gates weighing up to 600 kg. Leaf speed 9 m/min.
Specifications
| Type of limit switch | Electromechanical |
| Impact reaction | Mechanical clutch |
| Slowdown | No |
| U-Link | No |
| Control unit | Shyra ac |
| Board power supply | 230 v |
| Power input | 400 w |
| Locking | Mechanical |
| Release | Lever-operated with personal key |
| Frequency of use | Semi intensive |
| Protection rating | Ip24 |
| Environmental conditions | -20 ÷ 55 °c |
| Max. door/gate weight | 600 kg |
| Supply voltage AC | 230 v |
| Pinion module | 4 |
| Gate speed | 9 m/min |
Roger Technology for Sliding Gates
BG30/1004/HS
Electromechanical HIGH SPEED BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, irreversible ideal for sliding gates up to 1000 Kg. with built-in
Specifications
| Max gate weight: | 1000 kg |
| Power line supply: | 230V AC – 50Hz |
| Motor power supply: | 36V |
| Power rating: | 590W |
| Frequency of use: | Intensive use |
| Thrust: | 50 – 800N |
| Operating temperature: | -20+55°C |
| Protection level: | IP43 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 20 m/min (0.33 m/s) |
| Limit switch: | Magnetic |
| Onboard control unit: | B70/1DCHP |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Batteries recovery: | Optional 2 external battery 12V 4,5AH |
| Type exit gear: | Z17/mod 4 |
| Operating cycles per day (opening/closing – 24 hours no stop): | 800 |
| Maximum dimension product in mm (L x W x H): | 346 x 180 x 362 |
| Product weight packed (Kg): | 19,6 |
| Number items per pallet: | 40 |
Roger Technology for Sliding Gates
BH 30
Electromechanical BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, irreversible ideal for sliding gates up to 800-1000 kg with built-in digital controller B70 series, magnetic limit switch.
Specifications
| Max gate weight: | 800-1000 kg |
| Power line supply: | 230V AC – 50Hz |
| Motor power supply: | 24V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Thrust: | 50 – 1000N |
| Operating temperature: | -20+55°C |
| Protection level: | IP43 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 12 m/min (0.20 m/s) |
| Limit switch: | Magnetic |
| Onboard control unit: | B70/1DC |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Batteries recovery: | Optional 2 internal battery 12V 1,2AH – Optional 2 external battery 12V 4,5AH |
| Type exit gear: | Z17/mod 4 |
| Operating cycles per day (opening/closing – 24 hours no stop): | 1300 |
| Maximum dimension product in mm (L x W x H): | 315 x 165,8 x 329 |
| Product weight packed (Kg): | 19,9 |
| Number items per pallet: | 44 |
CMP200A(R) Barrier Gate Automatic Barrier Gate
Telescopic Boom Left Arm 6M
- The CMP200 series offers brand-new automatic barrier gate equipped with telescopic boom arm that allows direction exchanging according to site application and a silvery housing with built-in LED indicating the state of the parking barrier, providing humanized user experience.
- Its appearance and structure are designed based on the feedback and needs of the market and industry. Comparing with other barrier gates, the CMP200 series of automatic barrier gate products with telescopic straight boom might be an economic good fit meeting demands in different parking lots.
- Better experience with auxiliary traffic lights in the main body
- Support anti-smash and automatic closing with an infrared detector, loop detector, radar detector
- Arm direction can be exchanged between leftward and rightward according to site application
- Opening and closing angle of 90° ±2°
- Over voltage protection
- Support LPR, UHF reader controller and other devices for recognition and other A&C functions
Specifications
| Gate Opening / Closing Time | 3s (max. 4.5m), 6s (max. 6m) |
| Supply Voltage | 230V AC – 50Hz |
| Power Consumption | 100W (max. 120W) |
| Remote Controlling Distance | ≤30m |
| Remote Controlling Frequency | 430MHz |
| Cabinet Material | Cold rolled steel |
| Boom Material | Aluminum and wood |
| Motor MCBF | 1 million times |
| Working Humidity Range | ≤90% |
| Housing Dimensions | (D*W*H) 350 * 280 * 1010 (mm) |
| Packing Dimensions | (D*W*H) 420 * 405 * 1100 (mm) |
| Net Weight | 45kg |
| Gross Weight | 47kg |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Batteries recovery: | Optional 2 internal battery 12V 1,2AH – Optional 2 external battery 12V 4,5AH |
| Type exit gear: | Z17/mod 4 |
| Operating cycles per day (opening/closing – 24 hours no stop): | 1300 |
| Maximum dimension product in mm (L x W x H): | 315 x 165,8 x 329 |
| Product weight packed (Kg): | 19,9 |
| Number items per pallet: | 44 |
ZKTeco UHF5-PRO Card Reader
ZKTeco UHF5-PRO Card Reader
- UHF10 Pro are ZKTeco’s third-generation UHF readers, with much stable performance, longer reading distance, and faster recognition speed.
- The UHF reader is equipped with the passive UHF card function, which could be widely used in Vehicle
- Management and Personnel Management applications.
- The product also meets the CE, FCC technology requirements.
- Support two working modes: Trigger to Read & Always Read (Default)
- Support different wiegand data output (Wiegand 26 by default)
- LED at the bottom of readers indicating the reading status
Specifications
| Reading Distance | 2 to 8 meters (Hand held test) (Actual scenario test is around 4m) |
| Antenna Gain | 9dBi |
| Dimensions (mm) | 308.5 * 308.5 * 67.5 |
| Weight | 1.8kg |
| Power | 1.2 – 4.2W |
| Frequency | E: 865MHz – 868MHz ; F: 902MHz – 906MHz (adjustable) |
| Communication Interface | Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options) |
| Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Working Mode | Read Always (Default) and Read by Trigger |
| Output Power | 19dBm – 30dBm |
| Protection Level | IP66 |
| Working Voltage | DC 9-15V |
| RS485 Communication | Optional baud rate (9600, 19200, 38400, 57600, 115200); the default is 115200 |

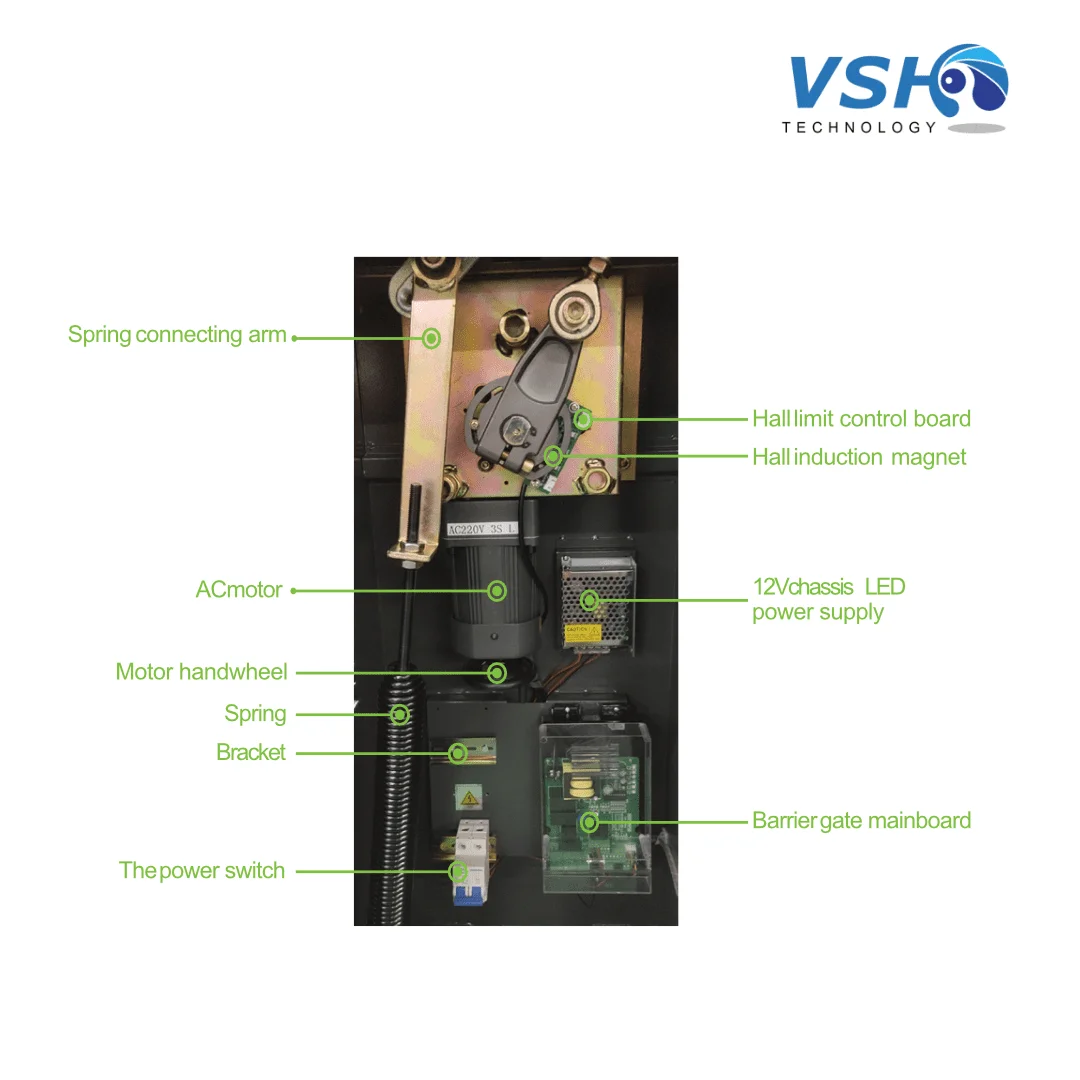

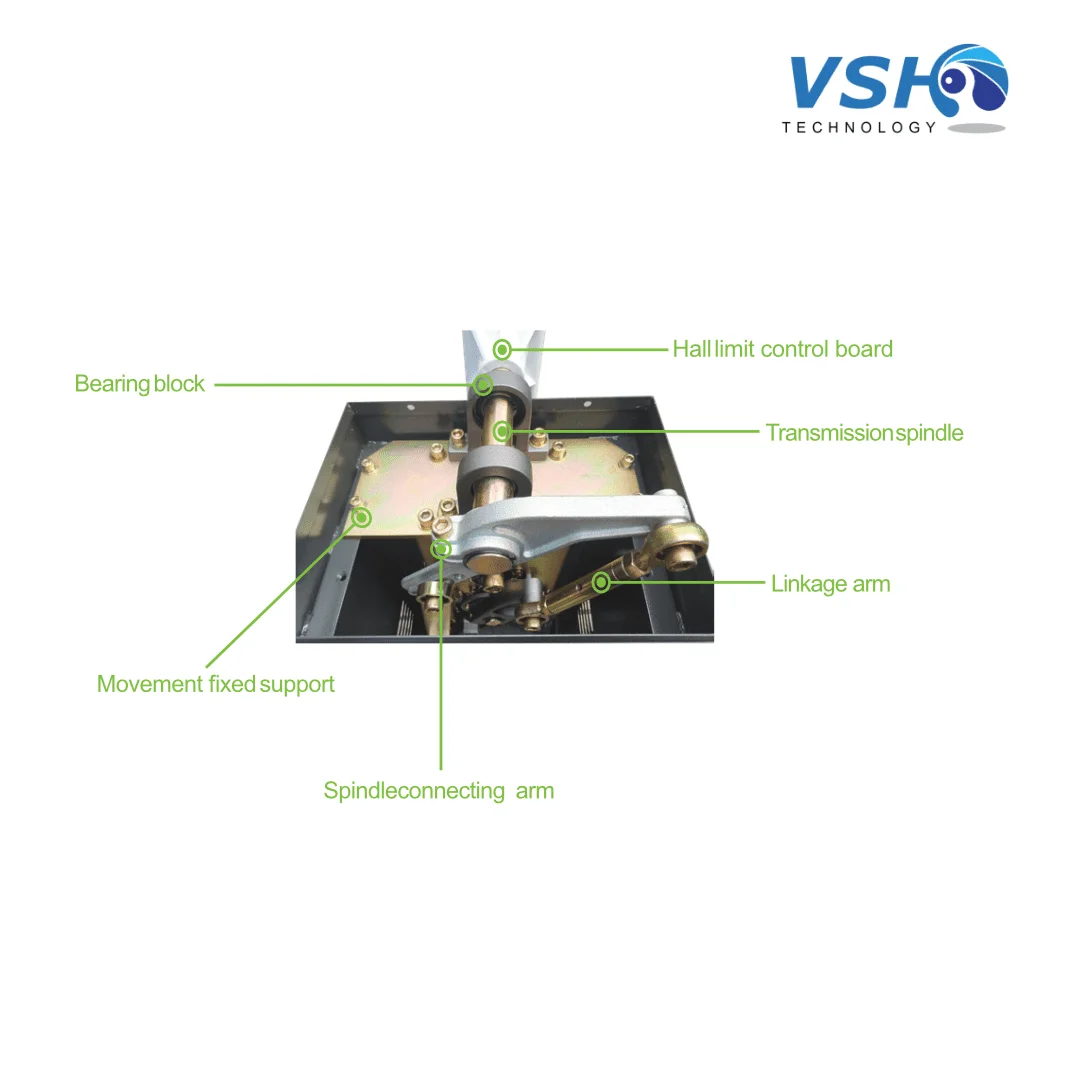

ZKTECO BGM1060-L & R (6 Meter) Barrier
Specifications
| Operation Speed: 5s |
| Boom Arm Length: 6m telescopic |
| Boom Arm Type: Straight Arm |
| Chassis Dimension: 350*300*1020mm |
| Ingress Protection Level: IP54 |
| Motor Type: 24V Brushless DC Electric Motor |
| Output Power: 120W |
| Rated Current: 6A |
| Power Supply: AC 110V, 60Hz |
| Operating Temperature: -35°C up to 70°C |
| Humidity Operation: <90% |
| MCBF motor: 3 million times |
| Remote Control Distance: ≥30m |
| Chassis Weight: 45kg |
ZKTECO BGM1045-L (4.5 Meter) Barrier
Specifications
| Operation Speed: 5s |
| Boom Arm Length: 6m telescopic |
| Boom Arm Type: Straight Arm |
| Chassis Dimension: 350*300*1020mm |
| Ingress Protection Level: IP54 |
| Motor Type: 24V Brushless DC Electric Motor |
| Output Power: 120W |
| Rated Current: 6A |
| Power Supply: AC 110V, 60Hz |
| Operating Temperature: -35°C up to 70°C |
| Humidity Operation: <90% |
| MCBF motor: 3 million times |
| Remote Control Distance: ≥30m |
| Chassis Weight: 45kg |
DS-TMG035 Entrance & Exit Anti-Fall Radar
Specifications
| 60/79 GHz MMIC with higher resolution and more stable detection. |
| Able to recognize the target moving direction, applicable to mixed entrance and exit scenes. |
| Adjustable detection distance and width with convenient operation and strong universality. |
| Free of learning, applicable to more complex environments. |
| Communication via RS-485 or Wi-Fi. The Wi-Fi version is equipped with a mobile phone application, with which you can debug and upgrade the radar with convenient operation. |
| Convenient installation and maintenance with a low manual workload and short working hour. |
| Adopted with advanced signal processing technology to detect pedestrians and vehicles stably and prevent the boom pole of the barrier gate from falling when pedestrians and vehicles are passing. |
| Adopted with LED indicators to indicate the radar working status. |
ZKTeco Plock 2 Parking Lock
Plock 2 is ZKTeco’s second generation of parking locks. Plock 2 keeps all original features
of Plock 1 and is equipped with new auto-sensing function. User can easily manage
his/her parking space by placing a sensor in a cigarette lighter receptacle. Compared
with traditional parking locks, Plock 2 does not need any manual operation, which makes
parking experiences more ideal. It is a competent private parking manager.
Specifications
| Altitude after rising | 420mm |
| Altitude after dropping | 75mm |
| Operating temperature | -10°C ~ +55°C |
| Power supply | LR20 alkaline dry battery recommended (D x 4) |
| Rated Voltage | DC6V |
| Quiescent current | ≤1.5mA |
| Sensing distance | ≤15m |
| Material | Steel |
| Control distance | ≤20m |
| Arm rising time / falling time | ≤6s |
| Model | Plock 2 |
| Operating current | ≤2.5A |
| Size | 460mm x 460mm x 75mm |
| Weight | 8KG |
