MORE DETAILS HIKVISION DOOR ACCESS

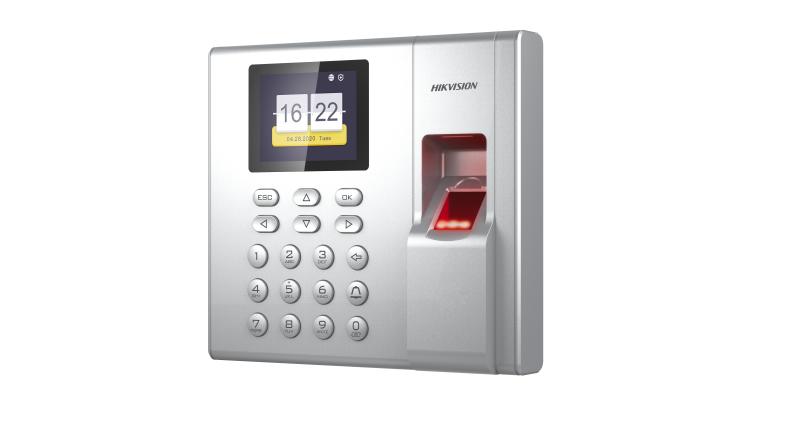

DS-K1T8003EF

2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in EM card reading module
Communication: TCP/IP，ISUP5.0 ； 1000 users, 1000 fingerprints，1000 card and Max. 100,000 event records
Support Access Control and Time Attendance Function, Optical Fingerprint Module
Remotely opens door via Hik-Connect mobile client；Tamper alarm.

Specifications

Display
Screen size	2.4-inch
Type	LCD-TFT display screen

Audio
Audio output	1 loudspeaker, 1 buzzer

Network
Wired network	TCP/IP, 10/100Mbps, self-adaptive
Communication protocol	TCP/IP, ISUP

Interface
Network interface	1
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
USB	1

Capacity
Card capacity	1000
Fingerprint capacity	1000
Event capacity	100,000

Authentication
Card type	EM card
Card reading distance	0 to 3.5 cm
Fingerprint module	Optical fingerprint module
Fingerprint comparing mode	1:1 and 1:N
Fingerprint recognition duration	＜ 1 s

General
Power supply	12 VDC/1 A
Working temperature	-10 °C to +55 °C (14 °F to +131 °F)
Working humidity	10% to 90% (no condensing)
Color	Silver
Dimensions	140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
Self Service Reports (SSR)	Stand-alone operation, calculate attendance data and export reports via USB interface
Installation	Wall mounting
Weight	Gross weight: 0.78 kg (1.72 lbs) Net weight: 0.22 kg (0.48 lbs)

DS-K1T8003MF

2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in EM card reading module
Communication: TCP/IP，ISUP5.0 ； 1000 users, 1000 fingerprints，1000 card and Max. 100,000 event records
Support Access Control and Time Attendance Function, Optical Fingerprint Module
Remotely opens door via Hik-Connect mobile client；Tamper alarm.

Specifications

Display
Screen size	2.4-inch
Type	LCD-TFT display screen

Audio
Audio output	1 loudspeaker, 1 buzzer

Network
Wired network	TCP/IP, 10/100Mbps, self-adaptive
Communication protocol	TCP/IP, ISUP

Interface
Network interface	1
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
USB	1

Capacity
Card capacity	1000
Fingerprint capacity	1000
Event capacity	100,000

Authentication
Card type	MI card
Card reading distance	0 to 5 cm
Fingerprint module	Optical fingerprint module
Fingerprint comparing mode	1:1 and 1:N
Fingerprint recognition duration	＜ 1 s

General
Power supply	12 VDC/1 A
Working temperature	-10 °C to +55 °C (14 °F to +131 °F)
Working humidity	10% to 90% (no condensing)
Color	Silver
Dimensions	140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
Self Service Reports (SSR)	Stand-alone operation, calculate attendance data and export reports via USB interface
Installation	Wall mounting
Weight	Gross weight: 0.78 kg (1.72 lbs) Net weight: 0.22 kg (0.48 lbs)

DS-K1T804AMF

Integrated management of access control and the time and attendance functions
3,000 fingerprints, 3,000 cards and 100,000 events storage
Built-in card reader for Mifare1 card
Communication via TCP/TP and Wi-Fi
RS-485, wiegand interface
Alarm input and output interface
ISUP5.0, ISAPI

Specifications

Display
Screen size	2.4-inch
Resolution	320 × 240
Type	LCD-TFT display screen

Audio
Audio output	1 loudspeaker, 1 buzzer

Network
Wired network	TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi	Support

Interface
Network interface	1
RS-485	1
Wiegand	1
Lock control	1
Exit button	1
Door contact input	1
Alarm input	1
Alarm output	1
TAMPER	1
USB	1

Capacity
Card capacity	3000
Fingerprint capacity	3000
Event capacity	100,000

Authentication
Card type	M1 card
Card reading distance	0 to 4.5 cm
Card reading duration	＜ 1 s
Fingerprint module	Optical fingerprint module
Fingerprint comparing mode	1:1 and 1:N
Fingerprint recognition duration	＜ 1 s

General
Indicator	Power/status (red/green)
Power supply	12 VDC/1 A
Working temperature	-10 °C to +55 °C (14 °F to +131 °F)
Working humidity	10% to 90% (no condensing)
Color	Black (included), gold (optional), silver (optional), white (optional)
Dimensions	205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
Installation	Surface mounting
Language	English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian

DS-K1T804AEF

Integrated management of access control and the time and attendance functions
3,000 fingerprints, 3,000 cards and 100,000 events storage
Built-in card reader for EM card
Communication via TCP/TP and Wi-Fi
RS-485, wiegand interface
Alarm input and output interface
ISUP5.0, ISAPI

Specifications

Display
Screen size	2.4-inch
Resolution	320 × 240
Type	LCD-TFT display screen

Audio
Audio output	1 loudspeaker, 1 buzzer

Network
Wired network	TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi	Support

Interface
Network interface	1
RS-485	1
Wiegand	1
Lock control	1
Exit button	1
Door contact input	1
Alarm input	1
Alarm output	1
TAMPER	1
USB	1

Capacity
Card capacity	3000
Fingerprint capacity	3000
Event capacity	100,000

Authentication
Card type	EM card
Card reading distance	0 to 5 cm
Card reading duration	＜ 1 s
Fingerprint module	Optical fingerprint module
Fingerprint comparing mode	1:1 and 1:N
Fingerprint recognition duration	＜ 1 s

General
Indicator	Power/status (red/green)
Power supply	12 VDC/1 A
Working temperature	-10 °C to +55 °C (14 °F to +131 °F)
Working humidity	10% to 90% (no condensing)
Color	Black (included), gold (optional), silver (optional), white (optional)
Dimensions	205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
Installation	Surface mounting
Language	English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian

DS-K1T321MFX

2.4-inch LCD screen, 2 MP lens
Multiple authentication methods, including face, fingerprint, card (M1 card), and PIN, etc.
Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
Face recognition duration < 0.2 s/User
Supports ISAPI and ISUP 5.0 protocols
Configuration via the PC web client and mobile web client
Supports wiring with secure door control unit or card reader via RS-485

Specifications

Display
Screen size	2.4-inch
Type	LCD

Video
Lens	1
Resolution	2 MP (video stream: 720P)
FOV	HFOV = 25°; VFOV = 43°

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
USB	1

Function
Face anti-spoofing	Support
Hik-Partner Pro	Support
Face recognition	Support

Authentication
Card type	M1 card

General
Power supply	12 VDC
Power consumption	≤ 6 W
Working temperature	-10 °C to +55 °C (14 °F to +131 °F)
Working humidity	0% to 90% (no condensing)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
Keypad	Support

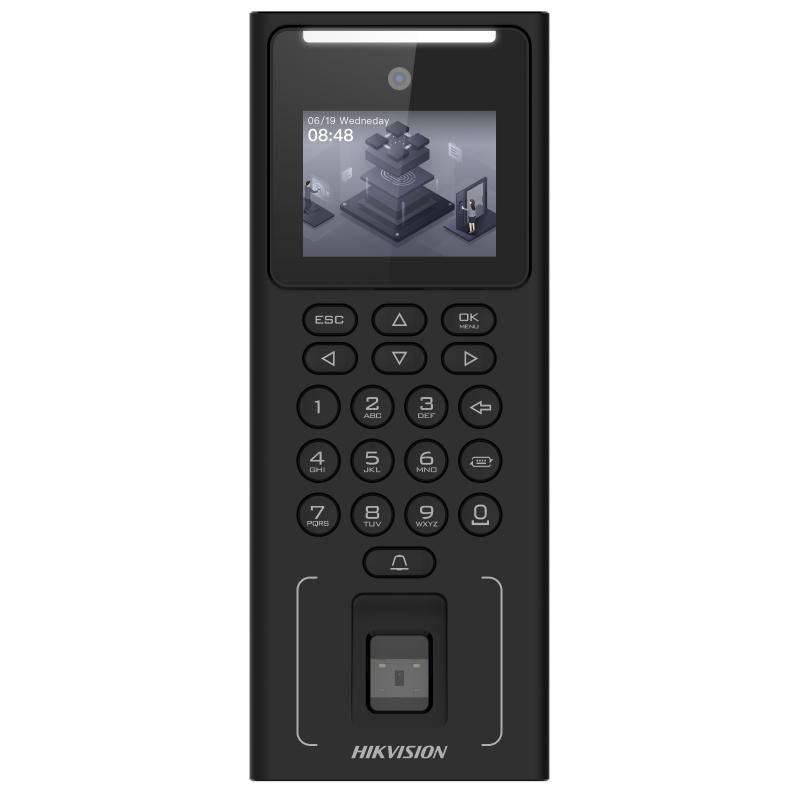

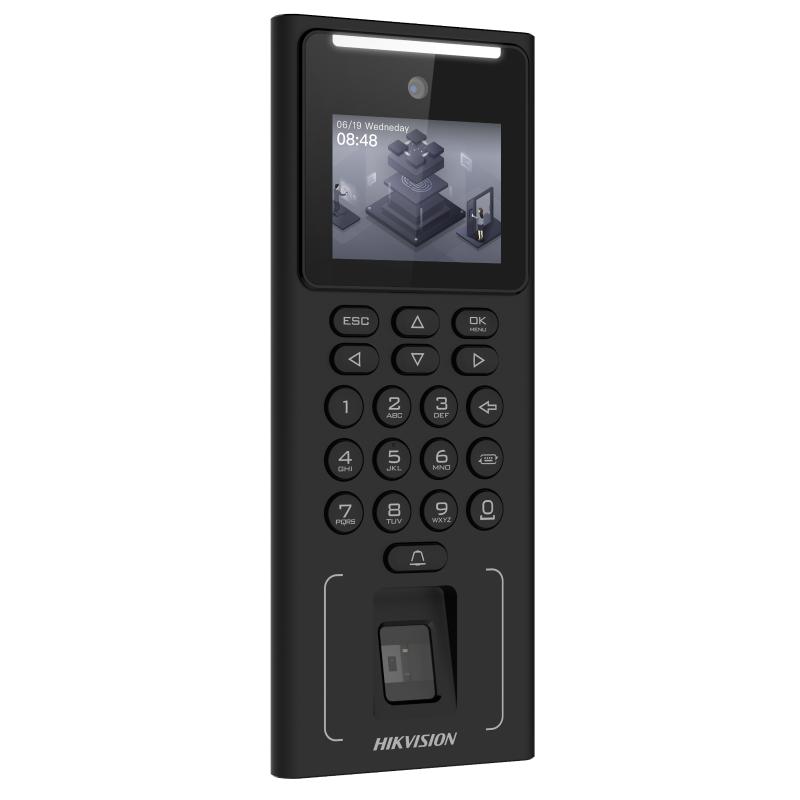

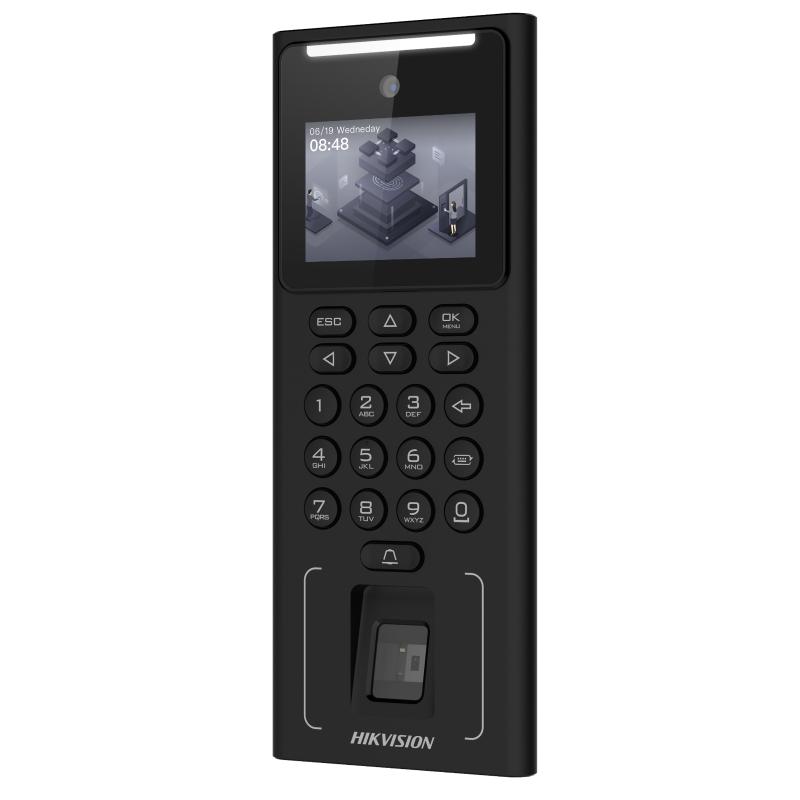

DS-K1T321EFX

2.4-inch LCD screen, 2 MP lens
Multiple authentication methods, including face, fingerprint, card (EM card), and PIN, etc.
Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
Face recognition duration < 0.2 s/User
Supports ISAPI and ISUP 5.0 protocols
Configuration via the PC web client and mobile web client
Supports wiring with secure door control unit or card reader via RS-485

Specifications

Display
Screen size	2.4-inch
Type	LCD

Video
Lens	1
Resolution	2 MP (video stream: 720P)
FOV	HFOV = 25°; VFOV = 43°

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
USB	1

Function
Face anti-spoofing	Support
Hik-Partner Pro	Support
Face recognition	Support

Authentication
Card type	EM card

General
Power supply	12 VDC
Power consumption	≤ 6 W
Working temperature	-10 °C to +55 °C (14 °F to +131 °F)
Working humidity	0% to 90% (no condensing)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
Keypad	Support

DS-K1T321MX

2.4-inch LCD screen, 2 MP lens
Multiple authentication methods, including face, card (M1 card), and PIN, etc.
Max. 500 faces, 3000 cards, and 150,000 events
Face recognition duration < 0.2 s/User
Supports ISAPI and ISUP 5.0 protocols
Configuration via the PC web client and mobile web client
Supports wiring with secure door control unit or card reader via RS-485

Specifications

Display
Screen size	2.4-inch
Type	LCD

Video
Lens	1
Resolution	2 MP (video stream: 720P)
FOV	HFOV = 25°; VFOV = 43°

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
USB	1

Function
Face anti-spoofing	Support
Hik-Partner Pro	Support
Face recognition	Support

Authentication
Card type	M1 card

General
Power supply	12 VDC
Power consumption	≤ 6 W
Working temperature	-10 °C to +55 °C (14 °F to +131 °F)
Working humidity	0% to 90% (no condensing)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
Keypad	Support

DS-K1T321EX

2.4-inch LCD screen, 2 MP lens
Multiple authentication methods, including face, card (EM card), and PIN, etc.
Max. 500 faces, 3000 cards, and 150,000 events
Face recognition duration < 0.2 s/User
Supports ISAPI and ISUP 5.0 protocols
Configuration via the PC web client and mobile web client
Supports wiring with secure door control unit or card reader via RS-485

Specifications

Display
Screen size	2.4-inch
Type	LCD

Video
Lens	1
Resolution	2 MP (video stream: 720P)
FOV	HFOV = 25°; VFOV = 43°

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
USB	1

Function
Face anti-spoofing	Support
Hik-Partner Pro	Support
Face recognition	Support

Authentication
Card type	EM card

General
Power supply	12 VDC
Power consumption	≤ 6 W
Working temperature	-10 °C to +55 °C (14 °F to +131 °F)
Working humidity	0% to 90% (no condensing)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
Keypad	Support

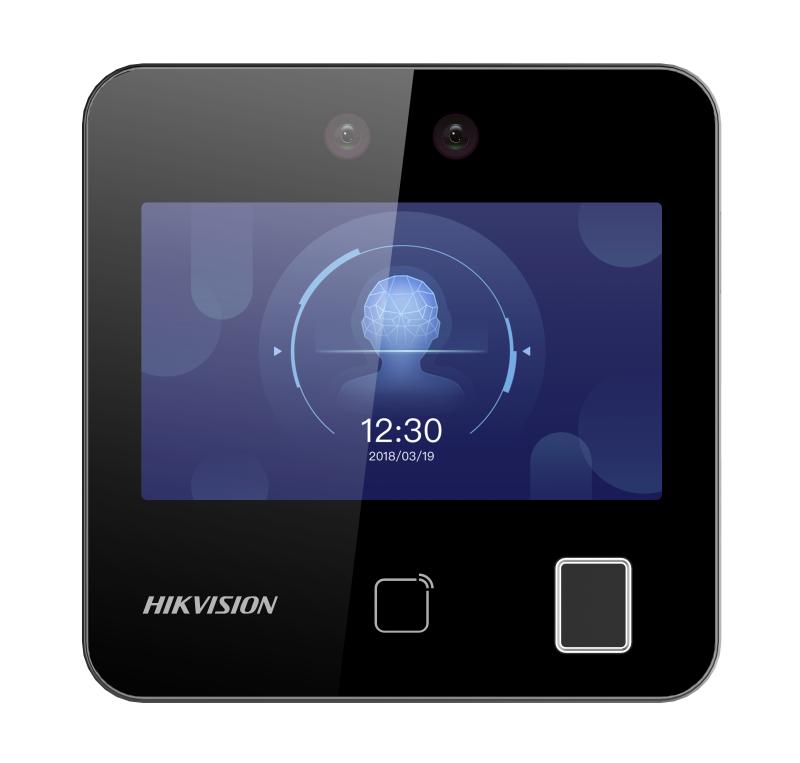

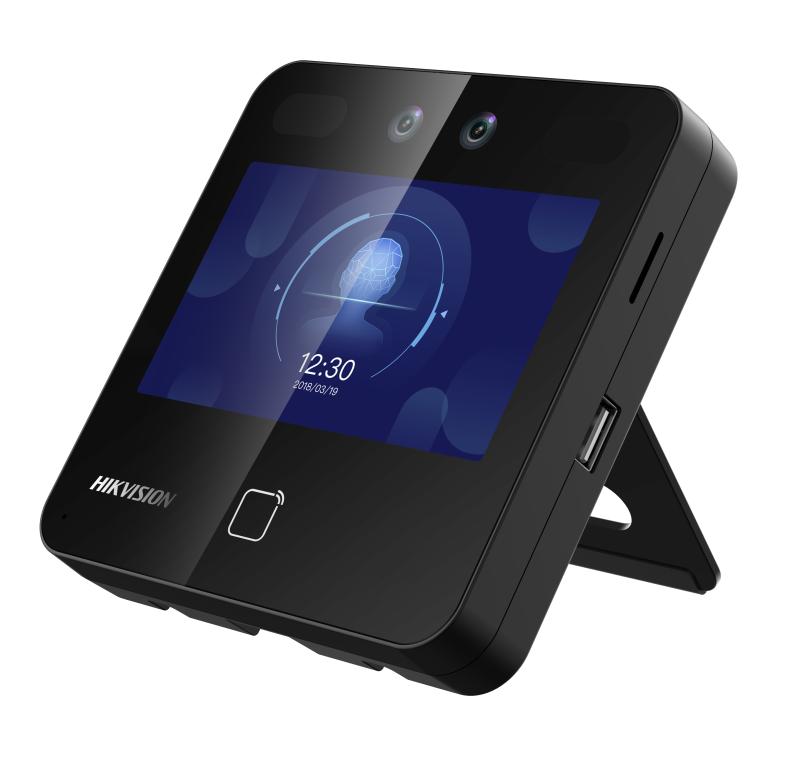

DS-K1T341CMF

Deep learning algorithm
4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity
Multiple authentication modes, including face, fingerprint and card, etc.
Face recognition duration < 0.2 s/User
Supports mask wearing detection
Connects to external access controller or Wiegand card reader via Wiegand protocol
Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
Two-way audio with client software, door station, indoor station, and main station

Specifications

Display
Screen size	4.3 inch
Operation method	Capacitive touch screen

Video & Audio
Lens	2
Resolution	2 MP (video stream: 720P)
FOV	HFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
Audio quality	Noise suppression and echo cancellation

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1,RS-485 (Half duplex,HIKVISION）
Wiegand	1,Wiegand （Hik 26bit,Hik 34bit）
USB	1

Function
Hik-Connect	Support
QR code recognition	Support
Face anti-spoofing	Support

Authentication
Card type	M1 card

General
Built-in access controller	Support
Power supply	12 VDC to 24 VDC, 2 A
Power consumption	≤ 10 W
Working temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Protective level	IP65
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean

DS-K1T343MFX

Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Duration < 0.2 s/User
Accuracy rate ≥ 99%

Specifications

Display
Screen size	2.4-inch4.3 inch
Operation method	Capacitive touch screen
Type	LCD

Video & Audio
Lens	2
Resolution	2 MP
Audio quality	Noise suppression and echo cancellation

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
Wiegand	1 Wiegand(Hik 26bit,Hik 34bit)
USB	1

Function
Face anti-spoofing	Support

Authentication
Card type	M1 card
Card reading frequency	13.56 MHz

General
Power supply	12 VDC, 1 A (power adapter included)
Working temperature	-10 °C to 40 °C (14 °F to 104 °F)
Working humidity	0% to 90% (no condensing)
Dimensions	118.4 mm × 118.4 mm × 21.8 mm (4.66″ × 4.66″ × 0.86″)
Platform	Hik-ProConnect and HikCentral Professional
Installation	Wall mounting, base mounting
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese

DS-K1T343EFX

Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in EM card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%

Specifications

Display
Screen size	4.3 inch
Operation method	Capacitive touch screen
Type	LCD

Video & Audio
Lens	2
Resolution	2 MP
Audio quality	Noise suppression and echo cancellation

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
Wiegand	1 Wiegand(Hik 26bit,Hik 34bit)
USB	1

Function
Face anti-spoofing	Support

Authentication
Card type	EM card
Card reading frequency	0 125 KHz

General
Power supply	12 VDC, 1 A (power adapter included)
Working temperature	-10 °C to 40 °C (14 °F to 104 °F)
Working humidity	0% to 90% (no condensing)
Dimensions	118.4 mm × 118.4 mm × 21.8 mm (4.66″ × 4.66″ × 0.86″)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
Installation	Wall mounting, base mounting
Weight	Gross weight: 0.71 kg (1.57 lb) Net weight: 0.23 kg (0.51 lb)
Platform	Hik-ProConnect and HikCentral Professional

DS-K1T343MX

Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Duration < 0.2 s/User
Accuracy rate ≥ 99%

Specifications

Display
Screen size	4.3 inch
Operation method	Capacitive touch screen
Type	LCD

Video & Audio
Lens	2
Resolution	2 MP
Audio quality	Noise suppression and echo cancellation

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
Wiegand	1 Wiegand(Hik 26bit,Hik 34bit)
USB	1

Function
Face anti-spoofing	Support

Authentication
Card type	M1 card
Card reading frequency	13.56 MHz

General
Power supply	12 VDC, 1 A (power adapter included)
Working temperature	-10 °C to 40 °C (14 °F to 104 °F)
Working humidity	0% to 90% (no condensing)
Dimensions	118.4 mm × 118.4 mm × 21.8 mm (4.66″ × 4.66″ × 0.86″)
Platform	Hik-ProConnect and HikCentral Professional
Installation	Wall mounting, base mounting
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese

DS-K1T343EX

Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in EM card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%

Specifications

Display
Screen size	4.3 inch
Operation method	Capacitive touch screen
Type	LCD

Video & Audio
Lens	2
Resolution	2 MP
Audio quality	Noise suppression and echo cancellation

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
Wiegand	1 Wiegand(Hik 26bit,Hik 34bit)
USB	1

Function
Face anti-spoofing	Support

Authentication
Card type	EM card
Card reading frequency	125 KHz

General
Power supply	12 VDC, 1 A (power adapter included)
Working temperature	-10 °C to 40 °C (14 °F to 104 °F)
Working humidity	0% to 90% (no condensing)
Dimensions	118.4 mm × 118.4 mm × 21.8 mm (4.66″ × 4.66″ × 0.86″)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
Installation	Wall mounting, base mounting
Weight	Gross weight: 0.71 kg (1.57 lb) Net weight: 0.23 kg (0.51 lb)
Platform	Hik-ProConnect and HikCentral Professional

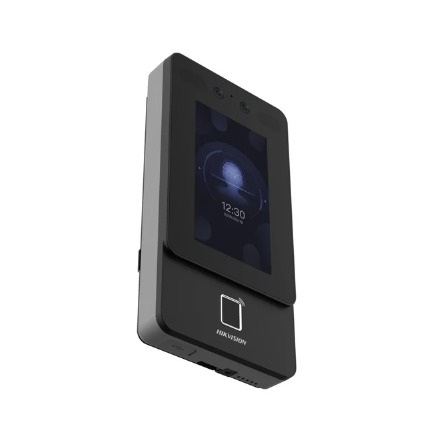

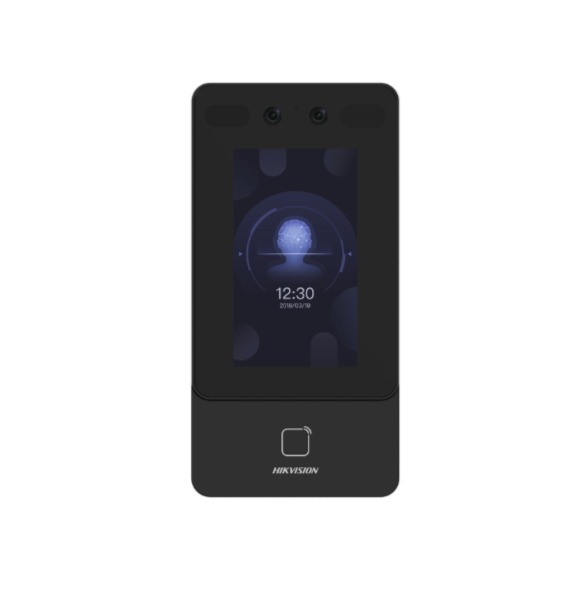

DS-K1T342MFX-E1

Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
Supports face with mask recognition
Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
Supports platform-applied personal PIN and device-set personal PIN

Specifications

System
Operation system	Linux

Display
Dimensions	4.3-inch
Resolution	272 × 480
Type	LCD
Operation method	Capacitive touch screen

Video
Pixel	2 MP
Lens	× 2
Video standard	PAL (Default) and NTSC

Network
Wired network	10 M/100 M self-adaptive

Interface
PoE	IEEE802.3at, standard PoE
Network interface	1
RS-485	1
Wiegand	1
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
USB	1

Capacity
Card capacity	3000
Face capacity	1500
Event capacity	150,000

Authentication
Card type	M1 card
Card reading frequency	13.56 MHz
Face recognition accuracy rate	＞99%
Face recognition distance	0.3 to 1.5 m
Fingerprint recognition duration	＜ 0.2 s

General
Power supply	Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
Working temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity	0% to 90% (no condensing)
Dimensions	91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″)
Protective level	IP65
Installation	Wall mounting
Weight	Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean

Function
Face anti-spoofing	Support
Audio prompt	Support
Time synchronization	Support

DS-K1T342MFX

Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%
Supports mask recognition

Specifications

Display
Screen size	4.3 inch
Operation method	Capacitive touch screen
Type	LCD

Video & Audio
Lens	2
Resolution	2 MP
Audio quality	Noise suppression and echo cancellation

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
Wiegand	1 Wiegand(Hik 26bit,Hik 34bit)
USB	1

Function
Face anti-spoofing	Support

Authentication
Card type	M1 card
Card reading frequency	13.56 MHz

General
Power supply	12 VDC, 1 A (power adapter included)
Working temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity	0% to 90% (no condensing)
Dimensions	91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Platform	Hik-ProConnect and HikCentral Professional
Installation	Wall mounting
Weight	Gross weight: 0.93 kg (2.05 lb) Net weight: 0.36 kg (0.79 lb)

DS-K1T342MX

Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%
Supports mask recognition

Specifications

Display
Screen size	4.3 inch
Operation method	Capacitive touch screen
Type	LCD

Video & Audio
Lens	2
Resolution	2 MP
FOV	HFOV = 75.5°; VFOV = 41.5°; DFOV = 87°
Audio quality	Noise suppression and echo cancellation

Network
Wired network	Support

Interface
Network interface	1 RJ-45, 10/100 M self-adaptive
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
RS-485	1 RS-485 (Half duplex, HIKVISION)
Wiegand	1 Wiegand(Hik 26bit,Hik 34bit)
USB	1

Function
Face anti-spoofing	Support

Authentication
Card type	M1 card
Card reading frequency	13.56 MHz

General
Power supply	12 VDC, 1 A (power adapter included)
Working temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity	0% to 90% (no condensing)
Dimensions	191.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″)
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Installation	Wall mounting
Weight	Gross weight: 0.93 kg (2.05 lb) Net weight: 0.36 kg (0.79 lb)
Platform	Hik-ProConnect and HikCentral Professional
