Optex Short Range Photoelectric Detector
| – IP65 structure |
| – Lightning and surge protection |
| – Anti-frost hood cover |
| – 99% beam blocking stability |
| – A.G.C. circuit |
| – Adjustable beam interruption time |
| – AX-70TN – Detection range 20m |
| – AX-130TN – Detection range 40m |
| – AX-200TN – Detection range 60m |
Optex Battery Operated Photoelectric Detector
| – Long battery life |
| – Easy battery replacement |
| – Triple tamper functions |
| – Low battery output and LED indication |
| – Intermittent output function |
| – Compatible with numerous wireless transmitters |
| – Battery saving timer function for wireless transmitters |
| – AX-100TFR – Detection range 30m |
| – AX-200TFR – Detection range 60m |
| – Long battery life AX-100TFR: approx. 5 years AX-200TFR: approx. 3 years(transmitter) AX-200TFR: approx. 5 years(receiver) |
Optex Battery Operated Photoelectric Detector
| – AX-350TF / 650TF （Selectable beam frequency long range photoelectric detector） |
| – Lightning and surge protection |
| – Anti-frost design |
| – Twin beams require simultaneous interruption to create activation |
| – Easy installation and alignment |
| – Sealed optics to prevent ingress of insects and dust |
| – 99% beam blocking stability |
| – A.G.C. circuit |
| – Adjustable beam interruption time |
| – AX-250PLUS – Detection range 75m |
| – AX-500PLUS – Detection range 150m |
Optex Battery Operated Photoelectric Detector
| – Battery operated photoelectric detector |
| – Wireless ready |
| – Sniper viewfinder with 2X magnification |
| – Weather protection with IP65 |
| – Spacious back box |
| – SL-350QFR– Max detection range 100m |
| – SL-350QNR – Max detection range 1000m |
| – Long battery life SL-350QFR: approx. 4 years (transmitter) SL-350QFR: approx. 5 years (receiver) SL-350QNR: approx. 4 years (transmitter) SL-350QNR: approx. 5 years (receiver) |
Optex Infraf red Photoelectric Beam
| – Long range photoelectric detector |
| – Lightning and surge protection |
| – Anti-frost design |
| – Twin beams require simultaneous interruption to create activation. |
| – Easy installation and alignment. |
| – Sealed optics to prevent ingress of insects and dust. |
| – 99% beam blocking stability. |
| – A.G.C. circuit. • Adjustable beam interruption time |
| – AX-250PLUS – Detection range 75m |
| – AX-500PLUS – Detection range 150m |
Optex High Mount Outdoor PIR Detector
| – HX-40 (High mount outdoor pir detector) |
| – Mounting height 2.5m – 3m |
| – Intelligent AND detection logic |
| – Dual signal processing circuit |
| – Summer night compensation logic |
| – Advanced temperature compensation logic |
| – Vegetation sway analysis logic |
| – Double conductive shielding |
| – Ideal detection area setting (adjustable detection length & spot area flexible masking) |
| – 180° angle adjustable bracket / Hood |
Optex Battery Operated High Mount Outdoor Detector
| – HX-40RAM (Battery operated high mount outdoor pir detector) |
| – Long battery life |
| – Active IR digital anti-masking |
| – Form C alarm output and tamper output-solid state switch |
| – Selectable N.C./N.O. trouble output -solid state switch |
| – Battery saving timer function |
| – Compatible with numerous wireless transmitters |
Optex 24m Long and Narrow Range High Mount Outdoor Detector
| – HX-80N (24m long and narrow range high mount outdoor detector) |
| – Mounting height 2.5-3m |
| – Intelligent AND logic with unique pyro-element |
| – Flexible detection area setting |
Optex 24m Long and Narrow Range High Mount Outdoor Detector
| – HX-80N RAM (Battery operated 24m long and narrow range high mount outdoor detector) |
| – Active IR digital anti-masking |
| – Battery box for numerous battery types |
Optex Outdoor PIR Detector
| – VX-402 (Outdoor pir detector) |
| – Limited detection range function |
| – Size judging function |
| – Double conductive shielding |
| – Sensitivity selection switch |
| – Temperature compensation |
| – Selectable N.C./N.O. alarm output |
| – Photocell for day and night operation |
Optex Battery Operated Outdoor PIR Detector
| – VX-402R (Battery operated outdoor pir detector) |
| – Battery saving circuit |
| – Low current draw |
| – Form C alarm output and tamper output |
| – Limited detection range function with size judging function |
| – Sensitivity selection switch |
| – Temperature compensation |
| – Compatible with numerous wireless transmitters |
Boundary Outdoor PIR Detector BXS-ST
The BXS-ST is an outdoor motion sensor with up to 12m detection range on each side. Ideal to detect people in the immediate boundary of your home or office building, this detector feature four PIRs, two on each side. The left and right detection area can be set up completely independently from each other. The BXS-ST is the standard hardwired model
| – 4 PIR technology |
| – 24 m (80 ft.) 12 m (40 ft.) on each side adjustable to 5 ranges (2.5 m, 3.5 m, 6.0 m, 8.5 m, 12.0 m) |
| – Individual detection area and sensitivity setting |
| – Extreme high detection mode |
| – SMDA logic for advanced temperature compensation |
| – Individual signal outputs (right / left) |
| – Double conductive shielding against bright light disturbance |
| – Back tamper |
| – Automatic walk test mode |
| – Detection method : Passive infrared |
| – Coverage : 24 m (80′); 12 m (40′) on each side |
| – Detection angle from wall : to Wall 0°, away Wall 3°, selectable |
| – Power input : 9.5 to 18 VDC |
| – Alarm period : 2.0 ±1 sec. |
| – International protection : IP55 |
Optex Battery Operated Outdoor Detector
| – BX-80NR (Battery operated outdoor pir detector for building perimeter) |
| – Double conductive shielding |
| – Advanced temperature compensation |
| – Limited detection range function |
| – Size judging function to avoid false alarms |
| – Variable detection range up to 24m (12m on each side) |
| – Audible alarm indicator to deter intruders |
| – Attractive, slender design |
Optex PIR & Microwave Combination Detector
| – DX-40 (Pir/microwave combination detector) |
| – Patented quad zone logic |
| – Microwave area shaping |
| – Spherical lens design |
| – Self checking function |
| – Anti-PIR tamper function (Patent Pending) (DX-40PLUS/60PLUS only) |
| – Selectable alarm memory |
| – LED remote control terminal |

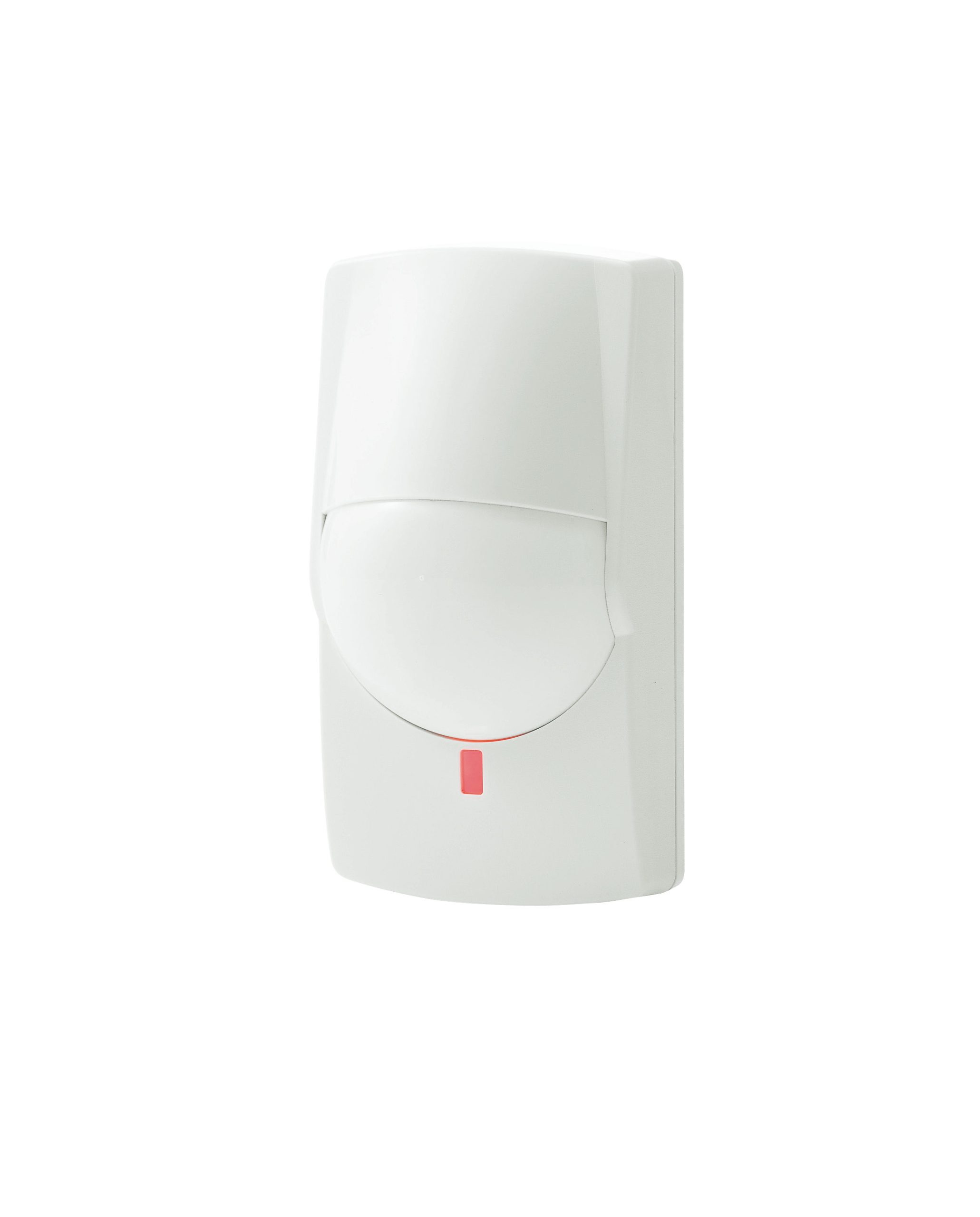

Optex PIR & Microwave Combination Detector
| – MX-40QZ (Pir/microwave combination detector) |
| – Patented quad zone logic |
| – Spherical lens design |
| – Anti-crosstalk technology |
| – Noise reduction circuit |
Optex Battery Operated Passive Infrared Detector
| – WNX-40PI-T (Battery operated PIR detector) |
| – Quad Zone Logic – Improved Patented Technology |
| – Spherical Lens – Technology to Back Up Quad Zone Logic |
| – Trouble-free & Easy Installation |
Optex Indoor Wall Mount PIR Detector
| – RX-40QZ (Small animal immunity) |
| – Patented quad zone logic |
| – Spherical lens design |
| – Temperature compensation |
| – Sealed optics |
| – Selectable pulse count (2 or 4) |
Optex Battery Operated 360 PIR detector
| – FX-360 (ceiling-mount detector with its unique, highly durable spherical lens offers unparalleled 360° detection performance) |
| – Spherical Lens design |
| – RFI protection |
| – Temperature protection |
| – Noise reduction circuit |
| – Selectable pulse count (2 or 4) |
| – LED remote control terminal |
Optex Battery Operated 360° PIR detector
| – WFX-360°2B (Battery operated 360° ceiling mount PIR detector) |
| – Originally Designed Hard Spherical Lens |
| – Advanced Quality Control |
